Experimental ultra - high temperature tube sterilizer JWO-UHT
Product Introduction
This equipment is specially developed and produced for institutions and organization, integrating preheating, sterilizing, cooling, SIP and filling, fully simulates the actual production situation, and accurately reflects the production data. The equipment can precisely control the product parameters, including preheating and sterilization temperature, flow etc. It is also capable of CIP cleaning and SIP online sterilizing. The machine is easy to operate, flexible, and superior performance. It is the achievement of our engineers’ long-time experimental optimization, which breaks the European and American brands’ monopoly against China.
This equipment can be used for homogeneous sterilization process of heat-sensitive liquid, such as fruit juice, jam, beverages, dairy products, spices, additives, traditional Chinese medicine and so on.
This equipment can be used for homogeneous sterilization process of heat-sensitive liquid, such as fruit juice, jam, beverages, dairy products, spices, additives, traditional Chinese medicine and so on.
For more information on products, please call us：+86-021-58250232；+86-021-58250230

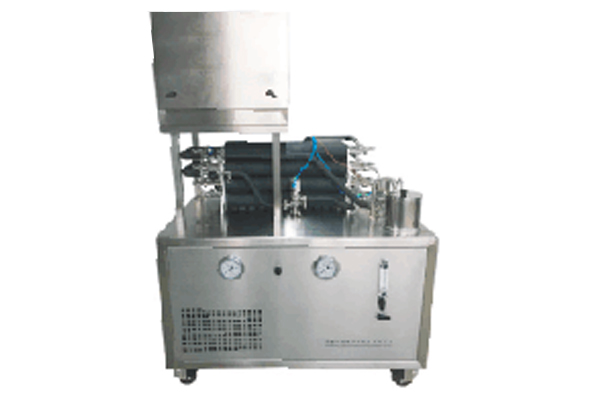

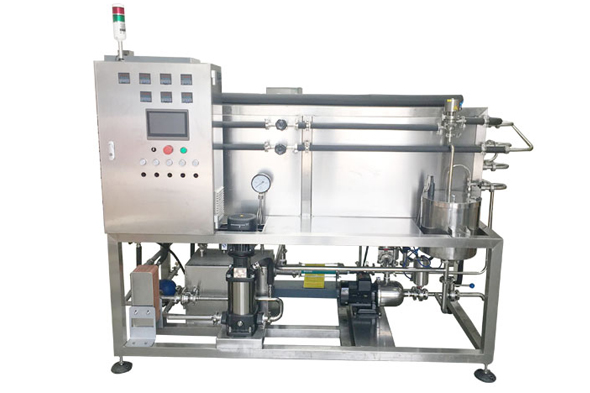

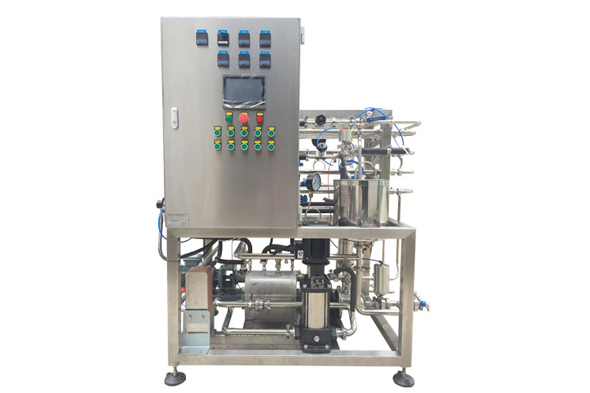

Product Display
Technical parameters and characteristics
1.Preheating temperature 55 ~ 75 ℃.
2.Sterilization temperature 80 ~ 148 ℃; temperature control accuracy ± 0.5 ℃.
3.Sterilization time: 5s / 10s / 15s / 30s / 45s etc., customized according to customer requirements.
4.Filling: aseptic cold filling, room temperature filling, hot filling.
5.The system working pressure up to 8bar.
6.Production capacity: standard production capacity of 20 liters / hour, 5 to 50 liters / hour adjustable.
7.Sterilization device: two groups of heating boiler system, respectively control the preheating section and heating section: double-boiler maximum sterilization temperature can reach 150 ℃.
8.Cooling device: two groups of cooling devices, cooling with tap water can be close to room temperature state, low temperature state can be reached by adding ice.
9.All the pipe materials are made of 316l stainless steel, except for the non-touching part which is made of food-grade 304 stainless steel.
10.The alarm system will automatically ring when lack of water or material, at the mean time the feed screw pump will automatically stop working.
11.The maximum power up to 12kw, three-phase power 380v.
12.Optional filling in the homogenizer or aseptic filling, fully simulated industrial production.
13.The host can be connected to computer control, experimental data can be printed and downloaded.
14.Size (length and width): 1320 × 850 × 1700mm.
