Multi-function extraction tank
Product Introduction
The Jwo-TQG serie of multi-function extraction tank is different from the traditional extraction tank, which is equipped with the essential oil extraction device, designed for R & D department, integrating a variety of functions in one, independent, sophisticated and convenient. It has been successfully applied to the research and development of many well-known universities and enterprises, and widely acclaimed.
For more information on products, please call us：+86-021-58250232；+86-021-58250230

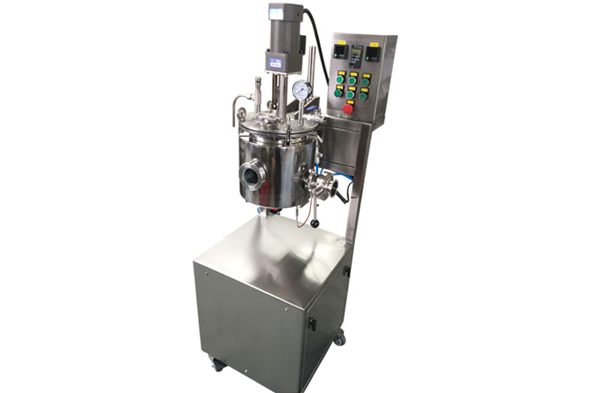

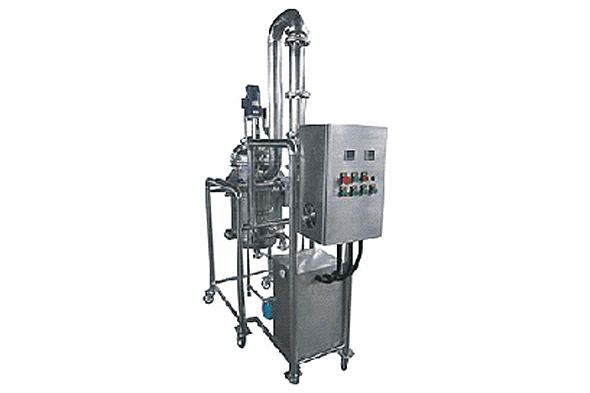

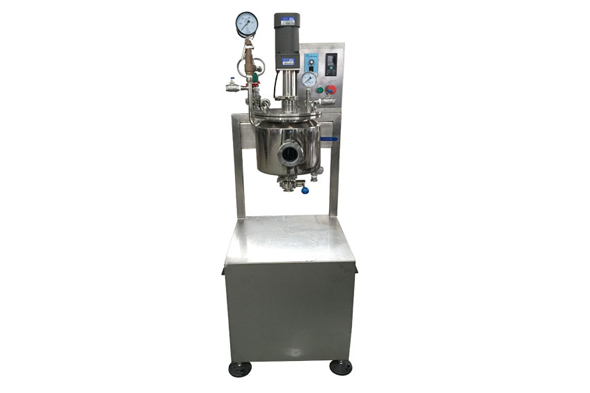

Product Display
Product Features
1. Equipment volume: Jwo-TQG-03,05,10,20,30,50,100,200,300,500 type.
2. Heating source: no external heating which is different from the traditional heating method, heating the tank and the bottom of the tank at the same time to ensure the temperature evenly.
3. SUS304 stainless steel, easy to operate.
4. Able to control and display the extraction temperature and heating temperature.
5. Main accessories: extraction tank, stirring motor, condenser, cooler, oil and water separator, lighting mirror, feed port, filter, heating bar, temperature display, safety valve, control cabinet and so on.
6. Three-layer insulation and flange structure.
7. On-line test data detection，According to user requirements ，The following parameters can be controlled：Extraction temperature 、Working hours、Material pH value、vacuum degree、Stirring speed、Agitation type、High and low level、On-line concentration、Dissolved oxygen.
2. Heating source: no external heating which is different from the traditional heating method, heating the tank and the bottom of the tank at the same time to ensure the temperature evenly.
3. SUS304 stainless steel, easy to operate.
4. Able to control and display the extraction temperature and heating temperature.
5. Main accessories: extraction tank, stirring motor, condenser, cooler, oil and water separator, lighting mirror, feed port, filter, heating bar, temperature display, safety valve, control cabinet and so on.
6. Three-layer insulation and flange structure.
7. On-line test data detection，According to user requirements ，The following parameters can be controlled：Extraction temperature 、Working hours、Material pH value、vacuum degree、Stirring speed、Agitation type、High and low level、On-line concentration、Dissolved oxygen.
Technical Parameter
| Model | JWO-TQG -10 |
JWO-TQG -20 |
JWO-TQG -30 |
JWO-TQG -50 |
JWO-TQG -100 |
JWO-TQG -200 |
JWO-TQG -300 |
JWO-TQG -500 |
| Capacity | 10L | 20L | 30L | 50L | 100L | 200L | 300L | 500L |
| Heatingpower（KW） | 3 | 4.4 | 5 | 6 | 12 | 24 | 36 | 48 |
| Themezzanine pressure(Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Tank pressure(Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Extraction temperature | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ |
| Stirring power(KW） | 0.09 | 0.12 | 0.2 | 0.25 | 0.4 | 0.75 | 1.1 | 2.2 |
| Heating area(㎡) | 0.22 | 0.28 | 0.35 | 0.55 | 0.99 | 1.36 | 1.42 | 1.6 |
| Condensate area(㎡) | 0.25 | 0.46 | 0.72 | 0.98 | 1.28 | 1.45 | 1.64 | 1.82 |
| Vacuum degree(Mpa) | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
| Equipment size(MM） | 1000X500X1700 | 1200X520X1780 | 1250X580X1800 | 1380X700X1850 | 1480X800X1900 | 1580X900X2700 | 1680X900X2900 | 1700X1200X3500 |
