Multi - functional extraction enrichment unit
Product Introduction
This equipment is suitable for traditional Chinese medicine, food, beverage and plants containing high oil content. It has multiple process extraction, including micro-pressure, heat reflux, infiltration etc., and can be used for the extraction of aromatic oil, essential oils etc. The high-efficiency, sophisticated and highly automatic machine confirms to GMP pharmaceutical standards. This equipment is very suitable for colleges and universities, hospitals, research institutes and enterprises (experimental / R & D and production of small and medium use).
For more information on products, please call us：+86-021-58250232；+86-021-58250230

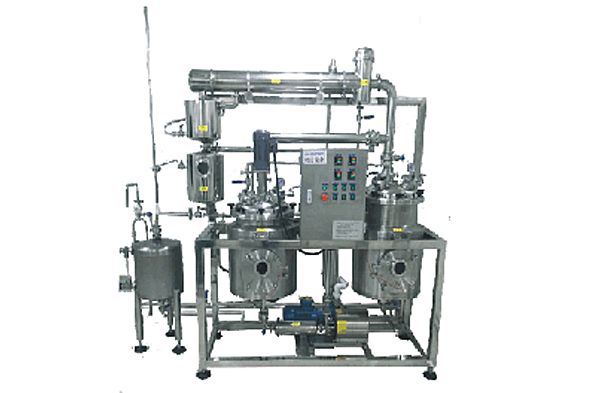

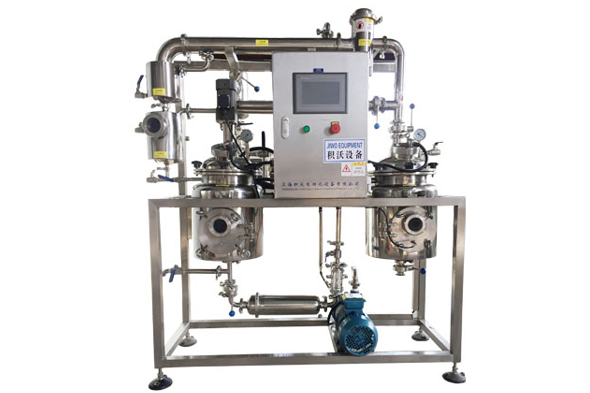

Product Display
Equipment Features
Model JWO-NSJ-10L, 20L, 30L, 50L, 100L, 200L, 300L, 500L.
1. the device first extracts the material into the concentration tank by distillation and then conduct the low-temperature concentration.
2. This equipment is the latest extraction enrichment unit developed by our company in accordance with the essential oil extraction process and combined with advanced automated control system on-line detection function.
3. The main accessories: extraction tank, concentrated tank, mixing motor, condenser, cooler, oil and water separator, with light mirror, inlet, filter, pipe mirror, heating bar, temperature display, safety valve, Cabinets, vacuum pumps and so on.
4. Automatic heating within the tank, no external heating source.
5. Three insulations, flange structure, no slag mouth on tank side, easy to clean, inside and outside the weld polished 500 mesh.
6. All made of high quality stainless steel (SUS304).
7. The material is excellent-selected and the machine is easy to operate, safe, efficient and highly automatic.
1. the device first extracts the material into the concentration tank by distillation and then conduct the low-temperature concentration.
2. This equipment is the latest extraction enrichment unit developed by our company in accordance with the essential oil extraction process and combined with advanced automated control system on-line detection function.
3. The main accessories: extraction tank, concentrated tank, mixing motor, condenser, cooler, oil and water separator, with light mirror, inlet, filter, pipe mirror, heating bar, temperature display, safety valve, Cabinets, vacuum pumps and so on.
4. Automatic heating within the tank, no external heating source.
5. Three insulations, flange structure, no slag mouth on tank side, easy to clean, inside and outside the weld polished 500 mesh.
6. All made of high quality stainless steel (SUS304).
7. The material is excellent-selected and the machine is easy to operate, safe, efficient and highly automatic.
Technical Parameter
| Model | JWO-TQG -10 |
JWO-TQG -20 |
JWO-TQG -30 |
JWO-TQG -50 |
JWO-TQG -100 |
JWO-TQG -200 |
JWO-TQG -300 |
JWO-TQG -500 |
| Capacity | 10L | 20L | 30L | 50L | 100L | 200L | 300L | 500L |
| Heatingpower （KW） |
3 | 4.4 | 5 | 6 | 12 | 24 | 36 | 48 |
| Themezzanine pressure (Mpa) |
0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Tank pressure (Mpa) |
0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Extraction temperature | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ |
| Concentrationtemperature | 40-80℃ | 40-80℃ | 40-80℃ | 40-80℃ | 40-80℃ | 40-80℃ | 40-80℃ | 40-80℃ |
| Heating area | 0.22 | 0.28 | 0.35 | 0.55 | 0.99 | 1.36 | 1.42 | 1.6 |
| Stirring power （KW） |
0.09 | 0.12 | 0.2 | 0.25 | 0.4 | 0.75 | 1.1 | 2.2 |
| Condensate area (㎡) |
0.25 | 0.46 | 0.72 | 0.98 | 1.28 | 1.45 | 1.64 | 1.82 |
| Vacuum degree (Mpa) |
0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
| Equipment size (MM） |
1380X520X1700 | 1500X550X1780 | 1650X580X1850 | 1680X700X1900 | 1900X800X2380 | 2800X900X2700 | 1900X900X2800 | 2000X1200X3500 |
