Forced circulating evaporator JWO-QZXH
Product Introduction
This equipment is suitable for carrot juice、Apple Juice、xylose、Tomato Juice、Pharmaceuticals, etc.。
For more information on products, please call us：+86-021-58250232；+86-021-58250230

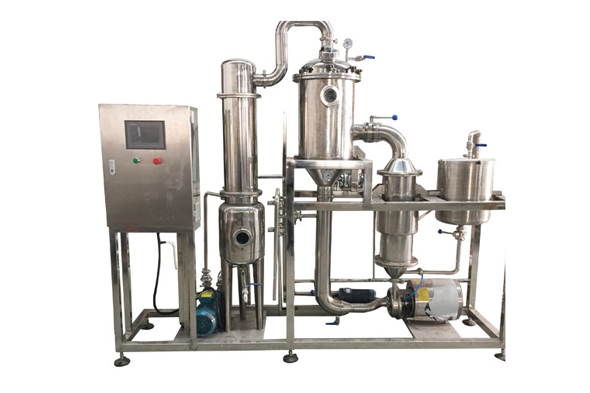

Product Display
Technical Parameter
Evaporation of water: 50Kg/h
Feed volume: 60Kg/h
Feed concentration: 12%
Evaporation temperature: 55℃
Vacuum:0.08～0.085 MPa
Steam pressure (gauge) 0.05～0.08 MPa
Cold water inlet and outlet temperature:～25/～39 ℃
Cooling water consumption: 0.5t/h
Total power: 3.5 KW
Feed volume: 60Kg/h
Feed concentration: 12%
Evaporation temperature: 55℃
Vacuum:0.08～0.085 MPa
Steam pressure (gauge) 0.05～0.08 MPa
Cold water inlet and outlet temperature:～25/～39 ℃
Cooling water consumption: 0.5t/h
Total power: 3.5 KW
Equipment composition
Tubular heater、Evaporator chamber、Steam tube condenser、Forced circulation pump、Vacuum pump、Single-screwpump、Scraper view mirror、Electrical components, etc.、Made of high quality SUS304 stainless steel，Surface polishing 500 mesh、Compliance with food hygiene and standards。(which can be customized and according to customer requirements and evaporation)
